Description

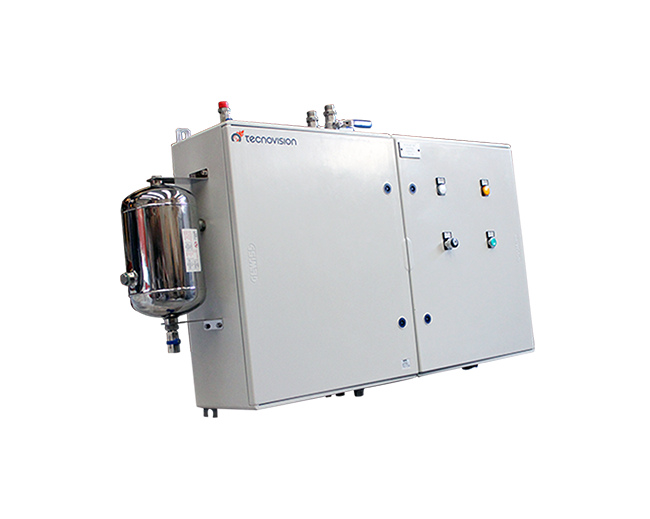

Control cabinet with logic controller for manage q.ty 1 INTEC device with air cooled Sondatec P. Supplied with the following instrumentations:
– Logic controller with display
– Double stage air filtration unit with triple pressure control valve with gauge
– Air pressure sensor
– Electrovalve for insertion/extraction camera
– Air Reservoir
– Camera temperature sensor management
– 2-In analogue expansion module
– 8 out relè module for alarms duplication
– Front panel push buttons and signals led’s
– Power supply unit for camera and instrumentation
Cabinet includes RJ45 sockets for Ethernet cable. Predisposed for ethernet switch containment.
Air pipes in Rilsan Pa11.Fittings outside cabinet are ½” M-BSPP.
Cabinet in painted RAL7035 steel, IP66, dimensions 600x1100x300mm. Power requirements 90-256Vac 50/60Hz. Operating temperature +5°/55°C.
