Description

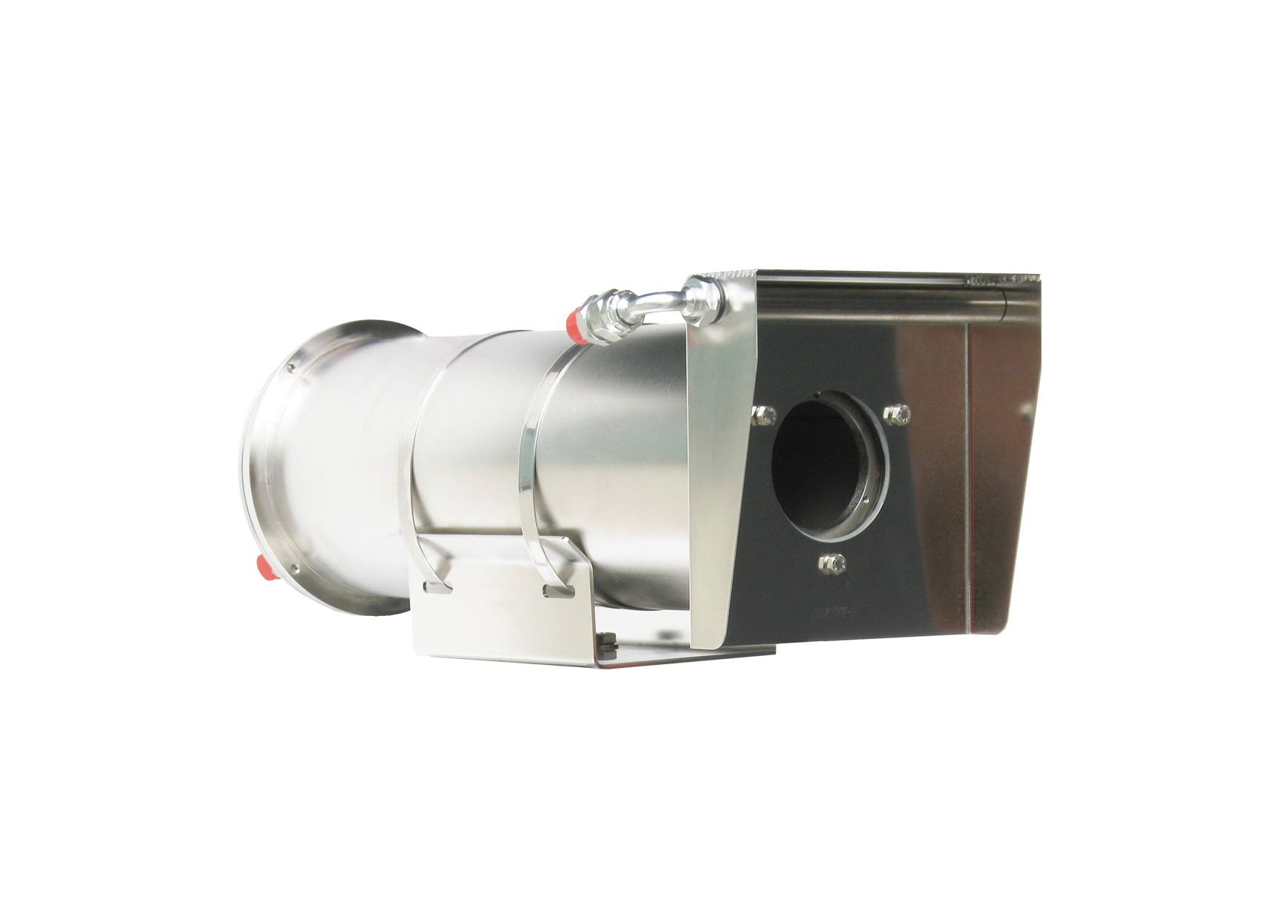

Compact housing with cooling air (Tin <35°C @ 1 Bar - 3Nm3/h). Internal dimensions: ø 90mm x 220mm, external dimension ø 150mm x 250mm length. Minimum focal lens usable without interception: 3.5mm (1.3"). Constructed in stainless steel AISI 304. Interconnections air circuit: 1x ½''M BSPP 60° flared, nickel-plated brass. Customer should supply instrument compressed air ISO 8573-1 at site (GFATEC series filter is suggested). Cable Entry No. 2x1/2"BSPP F-. Cable glands excluded.
